Samsung Galaxy Cell Phone Motherboard FPC Repair

When a Samsung Galaxy phone has a damaged motherboard connector, a standard screen or battery replacement may not be enough to get the device working again. Damaged FPC connectors can prevent important components from communicating with the phone's motherboard and may require specialized micro soldering and motherboard repair.

At Micro Soldering Repairs, we work with small, delicate components on smartphone motherboards, including damaged FPC connectors found on Samsung Galaxy devices.

What Is an FPC Connector?

FPC stands for Flexible Printed Circuit. FPC connectors are small connectors located on a smartphone's motherboard that allow flexible cables and other components to connect to the main board.

Inside a Samsung Galaxy phone, these connectors can be used for components such as:

Displays and touchscreens
Charging assemblies
Cameras
Buttons and sensors
Fingerprint readers
Daughterboards and interconnect cables
Other internal components

Because FPC connectors contain extremely small contacts and solder points, they can be damaged by drops, impact, improper disassembly, or an attempt to remove a cable with too much force.

Common Signs of a Damaged Samsung Galaxy FPC Connector

A damaged FPC connector can cause a variety of problems depending on which component it connects to. Symptoms may include:

A screen that does not display an image
Touchscreen problems
Cameras that stop working
Charging or USB connection problems
Fingerprint sensor issues
Buttons or sensors that do not function
An intermittent connection
A component that works only when pressure is applied
Visible damage to the motherboard connector

In some cases, the flexible cable itself is damaged. In others, the actual connector attached to the Samsung Galaxy motherboard has broken, lifted, or lost solder connections.

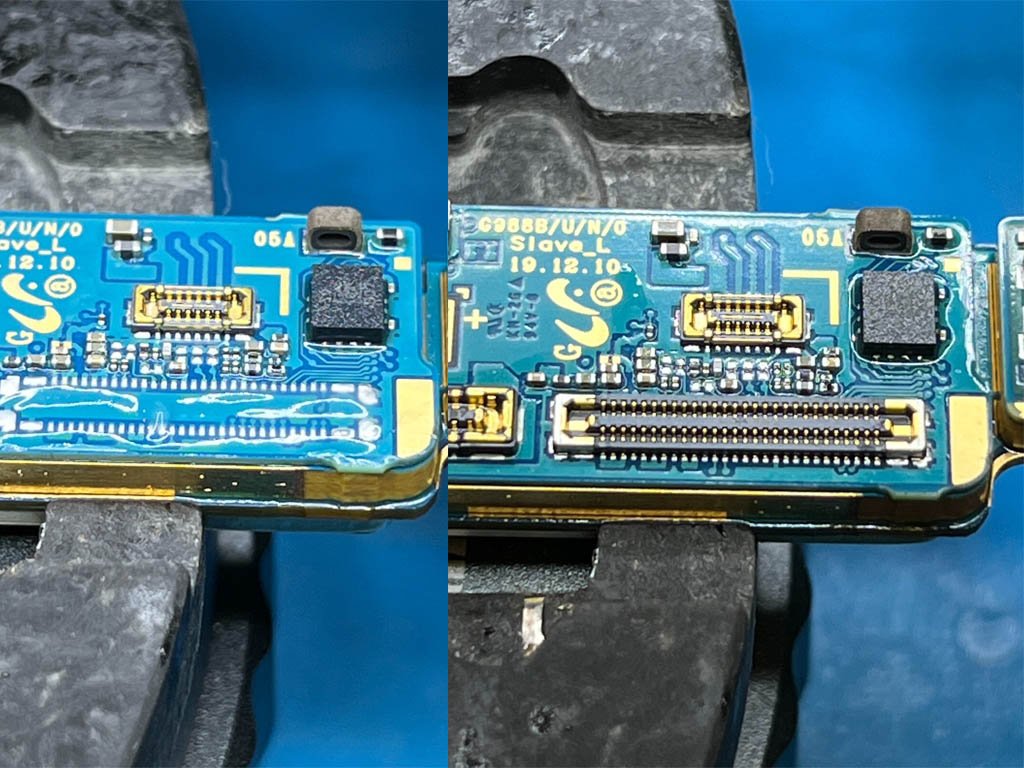

Samsung Galaxy Motherboard FPC Repair

Replacing an FPC connector is very different from replacing a normal phone component. The connector is soldered directly to the motherboard and contains numerous tiny contacts packed into a very small area.

A professional micro soldering repair typically involves carefully removing the damaged connector, inspecting the motherboard underneath it, preparing the solder pads, installing a replacement connector, and verifying each connection under magnification.

If motherboard pads or traces have also been damaged, additional board-level repair may be required before the replacement connector can be installed.

Why Micro Soldering Is Required

Traditional phone repair techniques are generally not enough for this type of damage. Micro soldering requires specialized equipment and precise control because motherboard components and solder connections can be extremely small.

During an FPC connector repair, a technician may use:

Microscope magnification
Precision soldering equipment
Hot air rework equipment
Fine-point tweezers
Flux and specialized soldering materials
Board holders and precision tools
Multimeters and other diagnostic equipment

The goal is to make clean, controlled connections without damaging nearby motherboard components.

Repairing Damaged Motherboard Pads

One of the more challenging situations occurs when an FPC connector has been ripped off the motherboard and takes solder pads or traces with it.

Simply installing another connector may not solve the problem if the electrical connections underneath the connector have been damaged.

Depending on the motherboard and the extent of the damage, board-level repair can involve rebuilding connections, repairing traces, or restoring damaged solder points before installing the replacement FPC connector.

This is one reason accurate diagnosis is important before attempting a motherboard repair.

Samsung Galaxy FPC Connector Repair vs. Motherboard Replacement

A damaged connector does not automatically mean the entire motherboard needs to be replaced.

In some situations, Samsung Galaxy motherboard repair can restore the existing board without replacing the complete motherboard. This can potentially preserve the original board and the data stored on the device.

Whether a repair is practical depends on the exact Galaxy model, the location of the connector, the extent of motherboard damage, and the condition of the surrounding circuitry.

Professional Cell Phone Micro Soldering

FPC connector replacement is a precision repair. Attempting to remove or install a connector without the proper equipment can result in additional damage to the motherboard.

Professional cell phone micro soldering is used for repairs that go beyond conventional component replacement. This includes damaged connectors, broken motherboard traces, lifted pads, and other board-level problems.

If your Samsung Galaxy has suffered motherboard connector damage, proper diagnosis can help determine whether the issue can be repaired at the component level.

Samsung Galaxy Motherboard Repair in Burlington, Vermont

Looking for Samsung Galaxy repair? Micro soldering Repairs can provide an option for devices with problems that cannot be resolved with a standard screen, battery, or charging-port replacement.

We work on Samsung Galaxy cell phone motherboard repairs, including damaged FPC connectors and other small board-level components.

If your Samsung Galaxy has a damaged FPC connector, connector pads, or another motherboard issue, contact us to discuss the repair and determine whether the device can be restored.
